MODULE NO: P16-D01
n
Item NO：P20-A100101
n
Display Area：320cm
x 32cm
n
Use of the Environment：Outdoor
IP65戶外等級
n
Pixel Pitch：20 mm
n
Display Color：Red
|
LED Specification
|
OVAL 5mm Lamp_R
|
OVAL 5mm Lamp_G
|
OVAL 5mm Lamp_B
|
|
LED Type
NO
|
DIP 546
|
|
|
|
Brightness@20mA
|
1000 mcd
|
|
|
|
Wave
Length (nm)
|
620~625
|
|
|
|
Viewing
Angle(2θ1/2)
|
110/40
|
|
|
|
Display Module Parameter
|
Specification
|
|
像素點距 Pixel
Pitch
|
20mm
|
|
模組解析 Module
Resolution
|
16 Dot x
8 Dot
|
|
像素結構 Pixel
Configuration
|
2R
|
|
驅動元件 LED
Driver
|
16 Bit
|
|
驅動方式 Driving
Method
|
1/4 Scan
Constant Current
|
|
模組尺寸 Module
Panel Size
|
320mm x 160mm
|
|
環境係數 Front
Module Weather Proof
|
IP65
|
|
模組重量 Module
Panel Weight
|
900 g
|
|
最佳視距 Option
Distance
|
>20M
|
|
工作電壓 Working
Voltage
|
DC +5V
|
|
最大負載 Max
Working Consumption
|
8 Watt
|
|
使用壽命 Life
Time
|
>75,000.Hours
|
|
工作溫度
Operating Environment Temperature
|
-20℃~50℃
|
|
工作溼度
Operating Humidity
|
0~95%
|
|
單點亮度
Brightness Per Pixel
|
500 mcd
|
|
模組材質
Material Of Module Frame
|
PC
|
|
Cabinet Parameter
|
Specification
|
|
箱體尺寸 Cabinet
Dimension (HxWxD)
|
326 x 38
x 8 (cm)
|
|
箱體解析 Cabinet
Resolution
|
160 x 16
Dot – One Side
|
|
箱體材質 Cabinet
Material
|
Iron
|
|
箱體塗裝 Cabinet Anti-Rust
Processing
|
With Outdoor's Powder Coating
|
|
箱體重量 Cabinet
Weight
|
60 Kg
|
|
箱體顏色 Cabinet
Color
|
Black
|
|
環境係數 Front
Module Weather Proof
|
IP65
|
|
最大負載 Max
Power Consumption
|
80 Watts
|
|
平均負載 Average
Power Consumption
|
40 Watts
|
|
訊號連接線 Signal’s Cable Between Cabinet
|
RS-232；USB Cable
|
|
散熱系統 Cooling System
|
With Two
DC Fan
|
|
可視角度 Viewing
Angle(H/V)
|
110/40
Degree @ 1/2 Brightness
|
|
The System Functions
|
Specification
|
|
Storage
Capacity
|
2Mb
|
|
Number of
programs
|
200 programs, each program support
16 regional play。
|
|
Display
Mode
|
45 animation effects
of the rain,
fountains, scrolls, etc.
|
|
Colorful Borders
|
Support a variety of Colorful
border effects, support image custom border
|
|
Type of
information
|
The text, images,
animation, countdown, is timing,
temperature, humidity, clock
|
|
Play
Mode Format
|
Take turns to play, regular long-player, support for the segment
by date, time period, the week is broadcast
regularly
|
|
Time display format
|
Time display dial clock, word clock, time with seconds, adjustable font size
|
|
Signal’s
Cable Between Cabinet
|
RS-232；USB Cable
|
|
Brightness
Control
|
16 brightness and allows you to manually brighten, support the timing adjust the
brightness of the six time periods
|
|
Screen switch
|
Manual switch; time switches support four time periods
|
|
DC
Operating Power Voltage
|
+5 V DC (4.5V ~ 6V),
normal power consumption less than
0.5W
|
|
Operating
Temperature
|
-30℃～70℃
|
|
PC
Operating System
|
MS
Windows Series Product
|
|

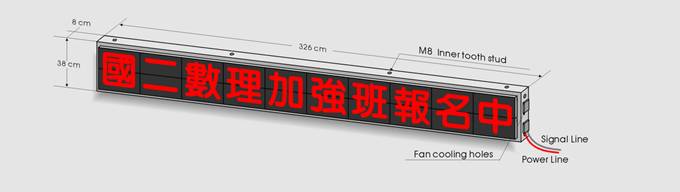

Cabinet
structure diagram
|
|
