TV wall Engineering Operational Guidelines
|
TV wall Engineering Operational Guidelines
|
n
Exploration wall structure to assess the hanging method, Structure
visas apply to the Government, with the Government
Advertising Act prompted.
n
Application
Engineering to assess the need for traffic and road conditions will apply for
traffic control.
n

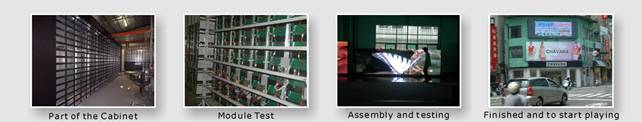

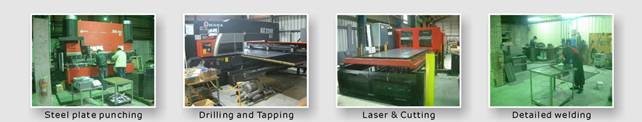

Cabinet structure
to safe, waterproof and embroidery are the necessary conditions.
n
In summer cabinet
internal temperature will reach 70 degrees Celsius. The cooling system must do it as fully
convective.
n
In order to achieve the exhaust heat, the blower and disturbing wind
installations is necessary.
n
The wire must absolute requirement to
comply with UL Certification, AC to do the allocation, And
configure the standard power control box.
n
Regularly check the cabinet
inter box temperature, Cooling system, Power quality, module status.
n
Timing clean refresh dust in the Display lamp surface
|
Synch LED Video Wall Series Overview
|
|
Module Type
|
P5-D08
|
P762-D08
|
P10-D02
|
P10-D04V
|
P16-D01V
|
P20-D01V
|
P25-01V
|
|
LED Type
|
SMD 3528
|
SMD 3528
|
DIP 346
|
DIP 346
|
DIP 546
|
DIP 546
|
DIP 546
|
|
Pixel
Composition
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
2R1G1B
|
2R1G1B
|
2R1G1B
|
2R1G1B
|
|
Pixel
Pitch(mm)
|
5
|
7.62
|
10
|
10
|
16
|
20
|
25
|
|
Virtual
Pixel Pitch
|
|
|
|
5
|
8
|
10
|
12.5
|
|
Module
Size(mm)
|
160X80
|
244X122
|
320X160
|
160X160
|
256X128
|
320X160
|
200X200
|
|
Module
Resolution(Pixel)
|
32X16
|
32X16
|
32X16
|
16X16
|
16X8
|
16X8
|
8X8
|
|
Pixel
Density / Per ㎡
|
40,000
|
17,222
|
10,000
|
10,000
|
3,906
|
2,500
|
1,600
|
|
View Angle
(@1/2Brightness)
|
120°/120°
|
120°/120°
|
110°/40°
|
110°/40°
|
110°/40°
|
110°/40°
|
110°/40°
|
|
Cabinet
Dimension(mm)
|
640X480
|
976X732
|
960X960
|
960X960
|
1024X768
|
960X960
|
1000X1000
|
|
Cabinet
Resolution(Pixel)
|
128X96
|
128X96
|
96X96
|
96X96
|
64X48
|
48X48
|
40X40
|
|
Cabinet
Weight (Kg)
|
25
|
45
|
60
|
60
|
55
|
60
|
65
|
|
Brightness
@ White Balance
|
>2,500
|
>1,300
|
>5,000
|
>5,000
|
>10,000
|
>9,000
|
>7,000
|
|
Max
Power/Per ㎡(Watt)
|
2,000
|
860
|
1,800
|
1,800
|
1,000
|
680
|
450
|
|
Average
Power /Per ㎡(Watt)
|
700
|
300
|
600
|
600
|
350
|
230
|
150
|
|
IP Rating (Front
/ Back)
|
Indoor
|
Indoor
|
IP65/IP54
|
IP65/IP54
|
IP65/IP54
|
IP65/IP54
|
IP65/IP54
|
|
Driving
Method
|
1/8 Scan
|
1/8 Scan
|
1/4 Scan
|
1/2 Scan
|
Static
|
Static
|
Static
|
|
Perfect
Viewing Distance (M)
|
4
|
6
|
8
|
8
|
15
|
20
|
25
|
|
Frame Rate
(Hz)
|
>120
|
>120
|
>120
|
>120
|
>180
|
>180
|
>180
|
|
Refresh
Frequency
|
>180
|
>180
|
>300
|
>300
|
>400
|
>400
|
>400
|
|
Operating Temperature(℃)
|
-20℃~+60℃
|
|
Operating
Voltage(DC/V)
|
DC +5V
|
|
AC Power
Require
|
AC110/60Hz;/ AC220/50Hz
|
|
R.G.B Gray
Grades
|
R:256 ;G:256 ;B256
|
|
Brightness
Adjusted
|
100 Grades By
Computer
|
|
PC Display
Interface Card
|
DVI (ATI ; nVIDIA Chip)
|
|
Signal Cable
Between Cabinet
|
RJ-45;Cat’5 LAN Cable
|
|
Display Method
|
Pixel To Pixel
Display Synchronized With Computer CRT
|
|
Communication Distance
|
Internet Cat’5 LAN
Cable:120M;Fiber
Cable:1000M
|
|
PC
Operating System
|
MicroSoft’s Windows
Series Operating System Product
|
|
