Synch Ultra-Thin Aluminum Cast Cabinet For Display Module Specification

App Environment

Indoor

Outdoor

Module Type

P4

P5

P8

P10

P16

P20

Pixel Pitch (mm)

4

5

8

10

16

20

Module Resolution

80 x 80 Dot

64 x 64 Dot

40 x 40 Dot

32 x 32 Dot

20 x20 Dot

16 x 16 Dot

Module Size (WxH)

32 cm x 32 cm

LED Type

SMD3528

SMD3528

SMD3528

DIP346

DIP346

DIP546

Max Power Consumption (W)

80

80

150

150

200

200

Resolution (Dot)

80 x 16 x 2

80 x 32

80 x 16 x 2

80 x 32

80 x 16 x 2

80 x 32

Pixel Configuration

2R

2R

2R1G

2R1G

1R1G1B

1R1G1B

Driving Method

1/16

1/16

1/4

1/4

Static

Static

Weight (Kg)

33 Kg

33 Kg

33 kG

35 Kg

35 Kg

35 Kg

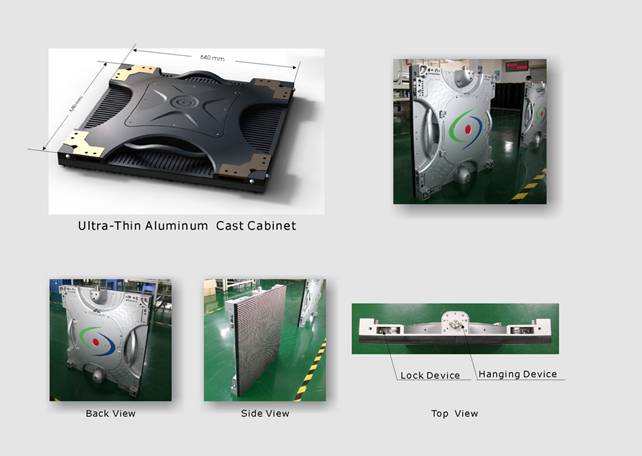

Cabinet Material / Dimension

High-pressure cast aluminum  / 640mm x 640mm

Brightness  (Nits)

2000

1600

1000

5000

5500

4400

Cabinet Resolution (Pixel)

160 x 160

128 x 128

80 x 80

64 x 64

40 x 40

32 x32

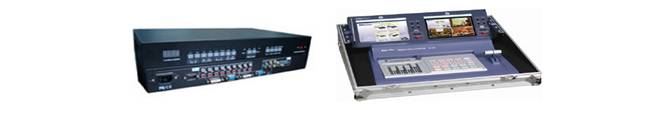

OPTIONAL EQUIPMENT：
