MODULE NO: P16-D01
n
Module Item:
P16-D01V
n
LED Type: DIP 546 2R1G1B
n
Apply Environment : Outdoor
IP65
n
Pixel Pitch: Real:16mm / Vitural:8
mm
n
Driving Method : Static
/ Constant Current
|
LED Specification
|
OVAL 5mm Lamp_R
|
OVAL 5mm Lamp_G
|
OVAL 5mm Lamp_B
|
|
LED Type
|
DIP 546
|
DIP 546
|
DIP 546
|
|
Brightness @20mA(mcd)
|
1000
|
2800
|
500
|
|
Wave Length (nm)
|
620~625
|
520~525
|
465~470
|
|
VF(V)
|
2.1~2.2
|
3.3~3.4
|
3.3~3.4
|
|
Viewing Angle(2θ1/2)
|
110/40
|
110/40
|
110/40
|
|
Display Module Specification
|
|
SPECIFICATION ITEM
|
DESCRIPTION
|
|
像素點距 Pixel
Pitch
|
Real:16mm / Virtual:8mm
|
|
模組解析 Module
Resolution
|
8x16
Pixel
|
|
像素結構 Pixel
Configuration
|
2R/1G/1B
|
|
驅動元件 LED
Driver
|
16 Bit
|
|
驅動方式 Driving
Method
|
Static
Constant Current
|
|

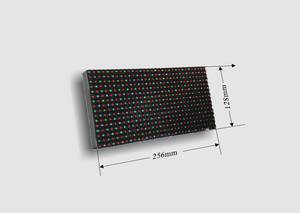

模組尺寸 Module
Panel Size
|
256mmx128mm
|
|
環境係數 Front
Module Weather Proof
|
IP65
|
|
模組重量 Module
Panel Weight
|
1.15Kg
|
|
最佳視距 Option
Distance
|
>15M
|
|
工作電壓 Working
Voltage
|
DC +5V
|
|
最大負載 Max
Working Consumption
|
35Watt
|
|
使用壽命 Life
Time
|
>75,000.Hours
|
|
工作溫度
Operating Environment Temperature
|
-20℃~50℃
|
|
工作溼度
Operating Humidity
|
0~95%
|
|
單點亮度
Brightness Per Pixel
|
4,666mcd
|
|
模組材質
Material Of Module Frame
|
PC
|
|

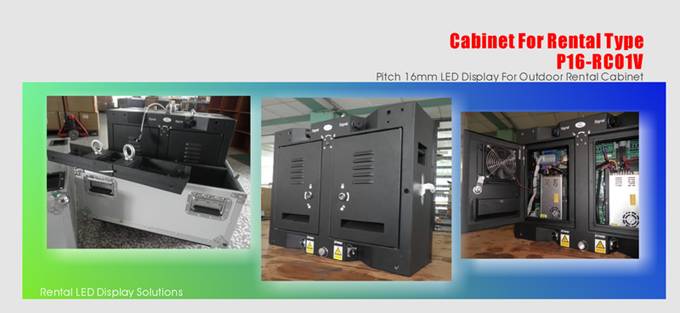

CABINET SPECIFICATION
|
DESCRIPTION
|
|
箱體像素 Cabinet
Pixel
|
Real:64x48
Pixel / Vitural:128x96 Pixel
|
|
物理解析 Physical
Resolution
|
3906
Pixel / ㎡
|
|
箱體尺寸 Cabinet
Dimension (HxWxD)
|
1024x768x135 mm
|
|
箱體重量 Weight
(Aluminum)
|
55 Kg
|
|
最大亮度 Typical
Brightness (Full White)
|
>11,000
nits
|
|
可視角度 Viewing
Angle(H/V)
|
110/40
Degree @ 1/2 Brightness
|
|
環境係數 Front
Module Weather Proof
|
IP65
|
|
最大負載 Max
Power Consumption
|
1000
Watts /m²
|
|
平均負載 Average
Power Consumption
|
350
Watts /m²
|
|
訊號連接線 Signal’s Cable Between Cabinet
|
Cat’5
RJ-45
|
|
訊號線最大長度 Max Link
Cable Length
|
100 M
|
|
支持顏色 Gray
Scale Colors
|
10 Bit
Depth Color
|
|
工作刷新率 Refresh
Rate
|
10
Hz~300Hz Adjustable
|
|
亮度控制 Brightness
Control
|
100
Level By Software
|
|
交流電源 AC
Operating Power Voltage
|
110V/60Hz;220V/50Hz
|
|
電腦顯示介面 PC
Display Interface Require
|
DVI
(ATI/nVIDIA)
|
|
電腦作業系統 PC
Operating System
|
MS
Windows Series Product
|
n
All kinds of activities, sports competitions,
low wall, advertising wall.
n
Large outdoor stage background, LIVE play
n
Product announcements, campaign rally activities
n
Entertainment, The outdoor performance,
Theater shows
n
Graduation ceremony, Exhibition, Wedding
hall Application
|
