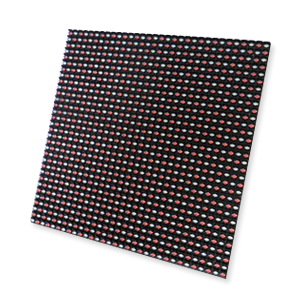

MODULE NO: P16-D01
u
模組編號: P10-D04
u
LED型號: DIP 346
1R1G1B
u
使用環境 : Outdoor IP65戶外等級
u
點距: 10
mm
u
驅動方式 : 1/4 Scan Constant Current
靜態恆流驅動
|
LED
Specification
|
OVAL 5mm Lamp_R
|
OVAL 5mm Lamp_G
|
OVAL 5mm Lamp_B
|
|
LED Type NO
|
DIP 346
|
DIP 346
|
DIP 346
|
|
亮度@20mA(mcd)
|
600~800
|
1200~1500
|
200~250
|
|
波長 (nm)
|
626~628
|
518~520
|
466~468
|
|
晶片尺寸 (mil)
|
12x12
|
13x13
|
13x13
|
|
視角(2θ1/2)
|
110/45
|
110/45
|
110/45
|
|
顯示模組參數
|
規格明細
|
|
像素點距 Pixel
Pitch
|
10mm
|
|
模組解析 Module
Resolution
|
16 x16
Pixel
|
|
像素結構 Pixel
Configuration
|
1R/1G/1B
|
|
驅動元件 LED
Driver
|
16 Bit
|
|
驅動方式 Driving
Method
|
1/4 Duty
Constant Current
|
|
模組尺寸 Module
Panel Size
|
160mmx160mm
|
|
環境係數 Front
Module Weather Proof
|
IP65
|
|
模組重量 Module
Panel Weight
|
620 g
|
|
最佳視距 Option
Distance
|
>8M
|
|
工作電壓 Working
Voltage
|
DC +5V
|
|
最大負載 Max
Working Consumption
|
30 Watt
|
|
使用壽命 Life
Time
|
>75,000.Hours
|
|
工作溫度 Operating
Environment Temperature
|
-20℃~50℃
|
|
工作溼度
Operating Humidity
|
0~95%
|
|
單點亮度
Brightness Per Pixel
|
500 mcd
|
|
模組材質
Material Of Module Frame
|
PC
|
2012/1/01
|
